High Tensile 16mm PET Strapping Band 5760N Pallet Bundling PET Packing Strap

Model 1609 PET strapping band is a high-tensile profile built for medium-to-heavy industrial pallets. With a 16 mm widened width and a 0.9 mm body, it reaches a breaking strength of 5760 N, a clear step above a standard medium-duty strap while staying efficient in material use. The widened face spreads cargo pressure across the package, so the strap holds its tension instead of failing at a single stress point. As a direct PET strapping manufacturer, we extrude every 1609 roll from virgin PET resin on our own lines, which keeps tensile strength, elongation and weld performance consistent from one batch to the next.

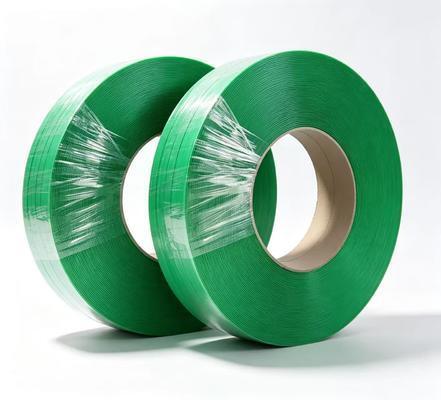

The 1609 coil above is extruded from 100% virgin PET raw material with a 16 mm widened, 0.9 mm profile. Its broad load-bearing face spreads pressure evenly, and its rust-free body protects finished surfaces throughout transport.

• Widened 16 mm Load Spread: the broader strap face disperses pressure across the package and avoids the breakage caused by local stress concentration.
• 5760 N Breaking Strength: upgraded tensile performance that holds heavier medium-to-heavy loads without moving up to a bulkier band.
• Rust-Free and Burr-Free: unlike steel banding, PET never rusts and carries no sharp burrs, so it is safe for both manual and machine operation.
• Anti-Aging and Pressure-Resistant: the strap body stays tough through long-distance transport and repeated stacking without deforming.
• High Weld Strength: a weld efficiency of 85% or higher keeps every heat-sealed joint at its rated holding power under vibration.
• Eco-Friendly and Recyclable: a recyclable packaging material that replaces traditional iron straps cleanly.

The 16 mm width and 5760 N strength sit in a practical sweet spot for medium-to-heavy loads: stronger than a light medium-duty strap, yet lighter and more material-efficient than a full heavy-duty band. It is enough to hold palletized building materials, ceramic tiles, aluminium profiles, packaged machinery and mixed finished goods, and it can be cut, tensioned and sealed quickly by hand or on semi-automatic tools. Choosing the right grade means less waste per pallet, fewer roll changes and lower packaging cost across a full production run.

Every 1609 strap is extruded from virgin resin on our own lines and then stretched to align its polymer molecules. That in-house control is exactly why the 5760 N tensile strength and stable elongation hold true from one production batch to the next.

For most medium-to-heavy export pallets, PET strapping is now the practical replacement for traditional steel banding. The differences show up clearly side by side:

The practical result is rust-free pallets, lighter freight weight and a safer packing line for your crew, while still delivering the holding power your load needs.

1609 PET strapping is aimed at medium-to-heavy industrial cargo: palletized building materials, ceramic tiles, aluminium profiles, packaged machinery parts and mixed finished goods. It is the cost-effective choice when a standard medium-duty strap is too weak but a full heavy-duty strap is more than the job requires. It performs reliably across long-distance ocean and land transport. For ultra-heavy loads such as steel coils and stone slabs, step up to our 19 mm profile for a higher safety margin.

On medium-to-heavy pallets, the 1609 profile holds building materials, finished industrial goods and mixed loads securely. The widened surface keeps the bundle square even when the pallet shifts during handling.

Every production batch is checked before it leaves the line, so quality is confirmed rather than assumed:

• Tensile testing: each batch is pulled to confirm the rated 5760 N breaking strength and the 11%–14% elongation range.
• Dimension inspection: width and thickness are measured to hold the 16 mm and 0.9 mm specification, together with core diameter and roll length.
• Surface inspection: every roll is inspected for consistent embossing, clean edges and uniform colour before packing.
• Weld strength check: heat-sealed joints are tested to confirm a weld efficiency of ≥85%.

Each 1609 roll is wrapped in thick waterproof film and packed in reinforced export cartons, then stacked on wooden pallets wrapped in stretch film and secured with PET strap for stable loading. We welcome third-party inspection and factory audits; our manufacturing process is certified to ISO 9001, and our raw materials are SGS-verified, PFAS-free and halogen-free.

Finished rolls are consolidated onto export pallets and unitised with the same PET strap we sell — the clearest proof of its holding power under real shipping conditions.

• Q: What loads is 16mm PET strapping suitable for? The 16 mm width and 5760 N strength suit medium-to-heavy loads such as palletized building materials, ceramic tiles, aluminium profiles, packaged machinery and mixed finished goods.
• Q: Can PET strap replace steel strap? Yes. For most medium-to-heavy export pallets PET is a direct replacement for steel banding: it is rust-free, lighter, safer to handle and recyclable, and it will not scratch or stain finished goods.
• Q: Is this strap suitable for export pallets? Yes. 1609 is built for long-distance ocean and land transport; the strap resists aging, keeps its tension through vibration and load settlement, and is packed in waterproof export cartons for humid sea freight.
• Q: Can you customize width and color? Yes. Width, thickness, colour, roll length and roll weight can all be customised, with printed logo and custom core labels available on request. Standard 1609 is stocked in green, black and dark green.
