5040N 14mm PET Packing Belt Factory Cargo Bundling PET Strapping

I am the engineer who specifies this grade, and the 1409 is our balanced-toughness mid-light belt — the grade I recommend to buyers who need more than a light strap but do not want to pay for a full heavy spec. It is a 14 mm × 0.9 mm PET packing belt rated at 5,040 N with 9%–13% elongation, supplied at about 1,211 m per coil. The engineering point is balance: an over-thin strap goes brittle and snaps, an over-thick strap turns hard and fights the bend radius; the 1409 is deliberately set between them, so it bends cleanly through semi-automatic machines and manual tools while still carrying a genuine mid-light industrial load. For the vast majority of general factory, warehouse and distribution-centre packing, this is the economically rational choice.

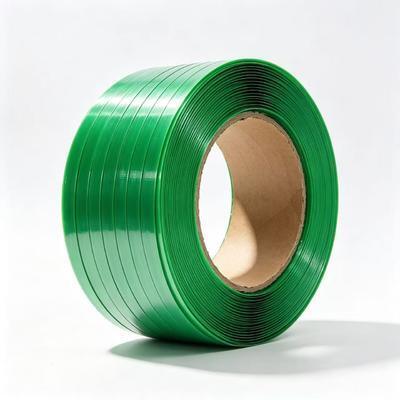

The 1409 coil. A balanced 14 mm × 0.9 mm mid-light section rated at 5,040 N — the grade I specify when heavy spec would be over-costed.

Here is where the 1409 sits in the ladder, so the trade-off is explicit:

If you are breaking light straps on mid-light work but the heavy grade is more spec — and cost — than the job needs, the 1409 is the targeted middle.

Why balance matters more than raw strength here: on mid-light loads the failure is rarely a clean tensile overload. It is a tooling and handling problem — an over-thin strap suffers stress cracking at the seal and in the feed channel, while an over-thick strap is too stiff to run smoothly through a semi-automatic head and creases at small bend radii. The 1409's optimised integrated-moulding process holds uniform tension along the length and stable mechanical properties, so it feeds cleanly by machine and by hand without the brittleness of an over-thin belt or the excessive hardness of an over-thick one.

• Uniform tension: integrated moulding keeps the whole length consistent, batch to batch.
• Balanced thickness: avoids over-thin brittleness and over-thick hardness.
• Good bend performance: feeds cleanly through machine and manual operation.
• Wear, aging and corrosion resistant: holds up in long-term stacking and transshipment.
• Two surfaces: embossed anti-slip for grip, smooth for scratch-free protection.
• Long coil length: about 1,211 m per coil, so fewer change-overs on the line.

• Semi-automatic strapping machines.
• Light-duty automatic equipment.
• Manual strapping tools.
• Embossed type for anti-slip; smooth type for scratch-free protection.

Tensile testing. I confirm the 5,040 N rating, the 9%–13% elongation window and the weld on every release — the seal is the usual system failure point.

Specified for industrial finished products, carton stacks, light pallets, hardware accessories, building-material bundles and regular logistics cargo — the standard mid-light load group found in factories, warehouses and distribution centres. It is the everyday production belt, not the specialist heavy grade.

• Tensile verification: sample pulled to confirm the 5,040 N strength and 9%–13% elongation.
• Dimensional measurement: width, thickness and coil length checked against the 14 mm / 0.9 mm / 1,211 m specification.
• Surface and edge inspection: clean, uniform finish; smooth, non-scratching edge.
• Weld test: heat-seal joint verified to hold at full strength.

The qualification file — business registration, enterprise and management-system certificates, open for audit before order placement.

This product is manufactured by Xiangyang Suhai Machinery Equipment Co., Ltd., founded February 2011 in Hubei, China, and recognised as a National High-Tech Enterprise (Certificate No. GR202442006492, issued 26 December 2024, valid for three years). The company was selected for Hubei Province's 7th batch of Specialised, Refined, Differentiated and Innovative SMEs. Manufacturing is certified under quality, environmental and occupational health & safety management systems, and products carry SGS test reports — the file overseas buyers require for customs clearance, supply-chain audits and end-customer compliance review.

Each roll is wrapped in plastic protective film and stacked on standard wooden pallets, the pallet fully wrapped in stretch film against dust and moisture and secured with PET straps for stable loading — suitable for container and full-truck shipment. Pre-sales load matching and free sample testing are provided.

Production and quality team. Extrusion, drawing, inspection and packing are in-house — the reason batch consistency holds order to order.

Finished-goods storage. We hold stock so mixed-SKU and repeat orders ship without a full production lead time.

Container loading, verified before seal. Every order is checked for count, packaging integrity and moisture protection before it ships.
