15mm PET Strapping Roll 5400N Pallet Logistics Packaging Strapping Roll

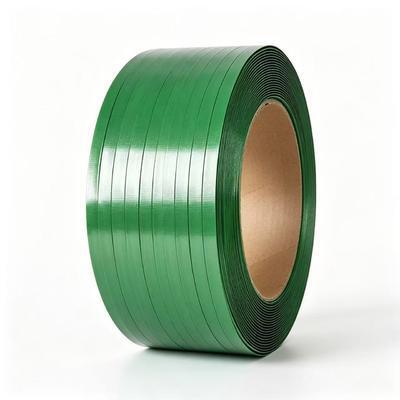

The 1509 coil, as supplied. 15 mm section with a full 0.9 mm body — the profile we specify for high-turnover general industrial packing.

I am the engineer responsible for this grade, and the 1509 is the strap I put forward when a buyer needs one specification that performs across the widest possible range of general industrial and logistics pallets. It is a 15 mm × 0.9 mm medium-heavy PET strap at a rated 5,400 N break strength and 9%–13% elongation. The engineering intent is deliberate position rather than peak performance: the 15 mm width and 0.9 mm body sit at the balance point between the flexibility of a light strap and the rigidity of a heavy one. That is what makes it the most cost-effective versatile roll for daily factory and warehousing packing — one SKU that covers palletised cargo, building materials and hardware bundling without the buyer carrying three different grades.

Our manufacturing plant. The 1509 is produced on our own PET extrusion and drawing lines, so section tolerance and tensile are controlled at the source, not at a trading desk.

Two parameters drive performance in general packing: section width governs how the load force is distributed and how well the strap resists edge cutting; section thickness governs tensile and rigidity. At 15 mm × 0.9 mm the strap achieves balanced tensile and flexibility. The moderate 0.9 mm thickness avoids the excessive hardness and brittleness that makes a heavy strap awkward for hand tools, while the standard 15 mm width keeps stress distribution uniform across the pallet edge. The result is a strap that runs cleanly on manual, semi-automatic and fully automatic equipment, stays flat under tension, and resists deformation across repeated stacking cycles and long-distance logistics.

Our production and quality team. As a direct manufacturer we run extrusion, drawing, inspection and packing in-house — the reason specification and supply stay consistent batch to batch.

Buyers frequently ask how the 1509 differs from the adjacent grades. This is the decision table I use with technical procurement teams:

For a mixed, high-turnover operation, the 1509 is the single grade that covers the most SKUs per ton — that is the commercial case for specifying it as the standard.

On the production floor. Stability of section and tensile across a run is what lets you set tools and machine tension once and leave them.

Our engineering team. We work load-matching with buyers — palm load, pallet configuration and machine setting are reviewed before we recommend a section.

Tension-window and tooling compatibility is where most packing failures originate, so I am explicit about it:

• Manual tools: compatible with standard 15–16 mm hand tensioners and sealers.
• Semi-automatic machines: runs in the standard tension window without re-setting.
• Fully automatic lines: the embossed surface provides the friction needed for automatic feed and seal.

Finished-goods storage. We hold stock across the standard range so repeat and mixed-SKU orders shift without a full production lead time.

Warehouse, inspection area and export loading under one roof — in-house control from extrusion through to container loading.

Every batch of the 1509 is released only after the same controlled sequence:

1. Tensile verification — sample pulled to confirm the 5,400 N break strength and 9%–13% elongation.
2. Section measurement — width, thickness and core measured against the 15 mm / 0.9 mm / 250 mm specification.
3. Surface inspection — clean, uniform finish; no burrs, no edge defects.
4. Weld check — heat-seal joint tested to confirm efficiency ≥85% of break strength.

Tensile testing station. The joint, not the strap body, is the usual failure point on a system — so weld efficiency is tested on every release.

This product is manufactured by Xiangyang Suhai Machinery Equipment Co., Ltd., founded February 2011 in Hubei, China, and recognised as a National High-Tech Enterprise (Certificate No. GR202442006492, issued 26 December 2024, valid for three years). The company was selected for Hubei Province's 7th batch of Specialised, Refined, Differentiated and Innovative SMEs. Manufacturing is certified under quality, environmental and occupational health & safety management systems, and products carry SGS test reports. Certificates and reports are available for supplier audits, customs clearance and end-customer compliance review.

Company qualification file — business registration, enterprise certificates and management-system certificates, open for audit before order placement.

Technical development record. Our R&D focus is on strength consistency, production efficiency and product-life improvements — the work behind a stable 5,400 N rating.

Each roll is wrapped in plastic protective film and stacked on standard wooden pallets, the pallet fully wrapped in stretch film against dust and moisture and secured with PET straps for stable loading — suited to container and full-truck shipment.

Export packaging and container loading. Dry, unitised and secured — ready to run on your line on arrival.

Container loading, verified before seal. Every order is checked for count, packaging integrity and moisture protection before shipment.

• Pre-sales: load matching and free sample testing against your actual pallet.
• In-sales: production progress tracking and quality supervision.
• After-sales: equipment adaptation guidance and packaging-stability support.
• Programmes: bulk orders, long-term supply contracts, OEM production and customised packaging.
