| Brand Name: | Suhai PET Strapping |
| Model Number: | 1308 |
| MOQ: | 5 tons |
| Price: | Negotiable, FOB / CIF |
| Delivery Time: | 5-10 working days after deposit |
| Payment Terms: | T/T, L/C at sight |

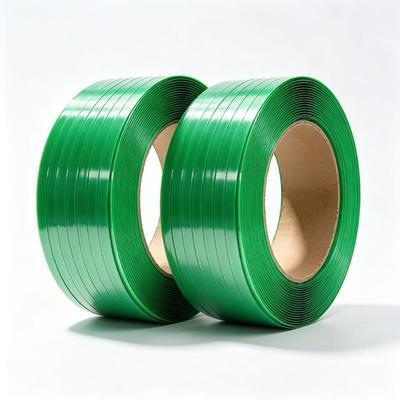

The 1308 coil as supplied. Narrow 13 mm section with a balanced 0.8 mm body — specified for compact cartons and light industrial lines where material consumption per package matters.
1.0 Scope and positioningI am the engineer responsible for this grade. The 1308 is a narrow-width light industrial PET strap, developed for compact cartons, small cargo bundles and light industrial packaging lines. Its purpose is not peak strength but efficiency: it delivers stable tension at a lower material consumption per package than wider straps, which is why it suits standardised light-load production and high-frequency packing. This is the grade I recommend when a buyer wants to reduce packaging cost and waste without losing bundling reliability.
2.0 Material and construction| Property | Specification | Note |
|---|---|---|
| Model | 1308 | Narrow-width light industrial series |
| Material | 100% virgin PET | High molecular orientation |
| Breaking strength | 4,160 N | Light industrial grade, rated at standard test conditions |
| Elongation at break | 8%–12% | Low extension keeps the binding tight |
| Weld strength | ≥85% of break strength | Joint retains near-full system strength |
| Tensile grade | Light industrial | Matched to compact and light loads |
| Dimension | Nominal | Control point |
|---|---|---|
| Width | 13 mm | Held to a consistent tolerance across the roll |
| Thickness | 0.8 mm | Balanced thin section |
| Length per coil | ~1,468 m | High metre count for efficient running |
| Coil weight | 20 kg / 25 kg | Buyer's choice |
| Core inner diameter | 250 mm | Standard mandrel fit |
| Edge | Smooth | Non-scratching |
Tolerance principle: for narrow-width strap, width consistency is the parameter that governs machine behaviour. A band that drifts in width feeds unevenly and jams. The 1308 is produced to a controlled width tolerance specifically so it runs cleanly on small semi-automatic machines and manual tools.
On our production floor. Controlled width tolerance and smooth feeding are the two properties that keep a narrow strap running without jams or misfeeds.
5.0 Material consumption and cost efficiencyFor a professional buyer the relevant metric is consumption per package, not price per ton alone. Three characteristics of the 1308 work in your favour:
| Factor | Mechanism | Effect |
|---|---|---|
| Narrow 13 mm section | Less material per strap length | Lower material consumption per package |
| High metre count (~1,468 m/coil) | More metres per coil | Fewer coil changes per shift |
| Consistent width feeding | Fewer jams and misfeeds | Less scrap and downtime |
Applied to a standardised light-load line, this is the combination that reduces packaging waste while holding bundling quality.
6.0 Machine compatibility and feedingSpecified for light industrial goods, compact carton bundles, small pallets and regular-sized finished-product packaging. Typical segments include light industrial finishing, compact carton consolidation and standardised light-load production lines.
Finished-goods storage. We hold stock across the standard range so mixed-SKU and repeat orders ship without a full production lead time.
Warehouse, inspection area and export loading under one roof — in-house control from extrusion through to container loading.
8.0 Quality assuranceEvery batch is released after the same controlled sequence:
Tensile testing station. The seal, not the strap body, is the usual failure point on a system — so weld integrity is verified on every release.
9.0 Certification and complianceThis product is manufactured by Xiangyang Suhai Machinery Equipment Co., Ltd., founded February 2011 in Hubei, China, and recognised as a National High-Tech Enterprise (Certificate No. GR202442006492, issued 26 December 2024, valid for three years). The company was selected for Hubei Province's 7th batch of Specialised, Refined, Differentiated and Innovative SMEs. Manufacturing is certified under quality, environmental and occupational health & safety management systems, and products carry SGS test reports. Certificates and reports are available for supplier audits, customs clearance and end-customer compliance review.
Company qualification file — business registration, enterprise and management-system certificates, open for audit before order placement.
Technical development record. R&D work targets strength consistency, production efficiency and product-life improvement.
Our manufacturing plant. The 1308 is extruded and drawn on our own lines, so width tolerance and tensile are controlled at source.
Production and quality team. Extrusion, drawing, inspection and packing are in-house — the reason specification and supply stay consistent order to order.
10.0 Commercial and logistics| Term | Detail |
|---|---|
| Minimum order quantity | 5 tons |
| Price basis | Negotiable, FOB / CIF |
| Payment terms | T/T, L/C at sight |
| Supply ability | 3,000 tons per month |
| Customisation | Colour, surface, roll length and weight, printed logo |
| Delivery | 5–10 working days after deposit |
Each roll is wrapped in plastic protective film and stacked on standard wooden pallets, the pallet fully wrapped in stretch film against dust and moisture and secured with PET straps for stable loading — suitable for container and full-truck shipment. Pre-sales load matching and free sample testing are provided.
Export packaging and container loading. Dry, unitised and secured — ready to run on your line on arrival.
Container loading, verified before seal. Every order is checked for count, packaging integrity and moisture protection before shipment.
In-house process control. Running one recipe at volume is how we hold consistent quality, stable supply and factory pricing on the same roll.
Our engineering team. We match load, tooling and machine tension to the section before recommending a grade — so the strap you buy fits the equipment you already run.
