Tension Boosted Plastic Strapping Roll 5760N Semi Heavy Packaging Strapping Roll

I am the engineer who specifies this grade, and the 1609 is the boosted medium-load strap that fills the gap between our light and heavy bands. It is a 16 mm × 0.9 mm PET strap rated at 5,760 N with 9%–13% elongation. The design goal is deliberate: many operations find that a light strap breaks under medium-load pressure, yet a heavy 19–25 mm band is over-specified and wastes cost. The 1609 is the grade I put in that middle window — tension-boosted over the 1608, with higher pressure resistance but the same 16 mm footprint, so no tooling change is needed.

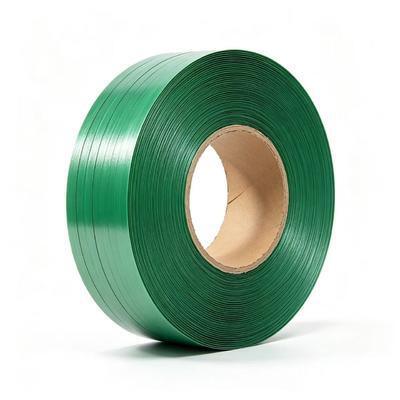

The 1609 coil. A boosted 16 mm section that carries a medium-load rating in the footprint of a light strap — the definition of the gap grade.

This is the ladder I use with production engineers when choosing the right tier, so the 1609's place is explicit:

If you are currently breaking light straps on medium-load work but do not want to step all the way up to a heavy band and its cost, the 1609 is the targeted fix.

• Tension-boosted: exclusive thickening-and-boosting raises tensile and pressure resistance over ordinary light straps.
• Higher pressure resistance: resists strap breakage and loose binding under medium-load pressure.
• Uniform force dispersion: the widened flat face spreads stress so the band does not concentrate and snap.
• Flexible under load: retains flexibility while raising capacity, avoiding rigid fracture from excess hardness.
• Stable properties: no deformation or relaxation after long-term stacking and transport.
• Rust-free and safe: no sharp edges or burrs, no marking of goods.

On our production floor. The boosted 0.9 mm section runs on the same lines as our standard grades, so thickness and tensile stay inside specification.

Why boosting tension matters: on medium-load work the failure is not usually a clean tensile overload — it is pressure at the strap line combined with repeated impact in transit. A light strap lacks the section to resist that, so it deforms and eventually breaks; a heavy band resists it easily but is over-costed and often over-wide for the pallet. By taking the light 16 mm footprint and lifting the section thickness to 0.9 mm, the 1609 adds the pressure and impact resistance of a heavier grade while keeping the tooling, the pallet fit and the per-metre cost close to a light strap. That is the engineering reason the gap grade exists.

• Fully compatible with all mainstream automatic and semi-automatic industrial strapping equipment.
• Same 16 mm tooling as our light straps — no retooling on migration.
• Embossed reinforced type for anti-slip friction on medium loads.
• Smooth reinforced type for anti-scratch protection on finished goods.

Tensile testing station. I confirm the 5,760 N rating, the 9%–13% elongation window and the weld on every release — the seal is the usual system failure point.

Specified for semi-heavy industrial finished products, bulk packaging materials and medium-load pallet goods — the standardised medium-load group that needs more bearing capacity than a light strap. Typical use is industrial finished-goods lines, medium pallet consolidation and bulk-material bundling.

Finished-goods storage. We hold stock across the standard range so mixed-SKU and repeat orders ship without a full production lead time.

Warehouse, inspection area and export loading under one roof — in-house control from extrusion through to container loading.

• Tensile verification: sample pulled to confirm the 5,760 N strength and 9%–13% elongation.
• Dimensional measurement: width, thickness and coil length checked against the 16 mm / 0.9 mm / 1,060 m specification.
• Surface and edge inspection: clean, uniform finish; smooth, non-scratching edge.
• Weld test: heat-seal joint verified to hold at full strength.

This product is manufactured by Xiangyang Suhai Machinery Equipment Co., Ltd., founded February 2011 in Hubei, China, and recognised as a National High-Tech Enterprise (Certificate No. GR202442006492, issued 26 December 2024, valid for three years). The company was selected for Hubei Province's 7th batch of Specialised, Refined, Differentiated and Innovative SMEs. Manufacturing is certified under quality, environmental and occupational health & safety management systems, and products carry SGS test reports — the file overseas buyers require for customs clearance, supply-chain audits and end-customer compliance review.

Company qualification file — business registration, enterprise and management-system certificates, open for audit before order placement.

Technical development record. R&D work targets strength consistency, production efficiency and product-life improvement.

Our manufacturing plant. The 1609 is extruded and drawn on our own lines, so section and tensile are controlled at source.

Production and quality team. Extrusion, drawing, inspection and packing are in-house — the reason specification and supply stay consistent order to order.

Each roll is wrapped in plastic protective film and stacked on standard wooden pallets, the pallet fully wrapped in stretch film against dust and moisture and secured with PET straps for stable loading — suitable for container and full-truck shipment. Pre-sales load matching and free sample testing are provided.

Export packaging and container loading. Dry, unitised and secured — ready to run on your line on arrival.

Container loading, verified before seal. Every order is checked for count, packaging integrity and moisture protection before shipment.

In-house process control. Running one recipe at volume is how we hold consistent quality, stable supply and factory pricing on the same roll.

Our engineering team. We match load, tooling and machine tension to the section before recommending a grade — so the strap you buy fits the equipment you already run.
