Standard 19mm PET Strapping Roll 7600N Steel Coil Grade Polyester Strap Roll

I am the engineer who specifies this grade, and the 1910 is our standard heavy-duty PET strap — the workhorse I put forward for heavy industrial cargo. It is a 19 mm × 1.0 mm band rated at 7,600 N with 9%–13% elongation. It sits in the middle of our heavy range: below the 9,120 N 1912 for the very densest loads, above the boosted 1609, and squarely aimed at large pallets, building-material bundles, metal products and heavy logistics goods. The engineering intent is a reliable, standard-grade heavy band that holds its tension on heavy loads without the brittleness that makes an over-hard strap fracture in the machine.

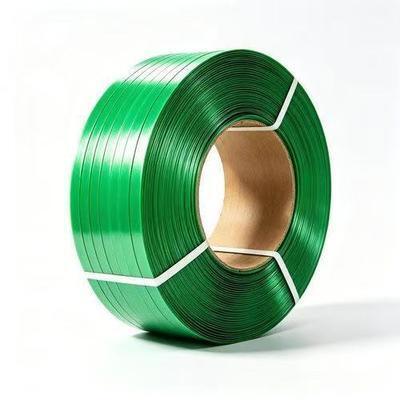

The 1910 coil. A standard heavy 19 mm × 1.0 mm section rated at 7,600 N — the grade I specify for large pallets and heavy metal goods.

The 1910 belongs to our standard heavy-duty series. It is aimed at heavy industrial finished products, large pallets, building-material bundles, metal products and heavy logistics cargo — loads that a medium strap cannot safely hold. It carries the higher breaking load and pressure resistance of a heavy grade while keeping the width at a manageable 19 mm, so it fits the common heavy-duty machine platforms.

• Standard heavy thickness: higher breaking load and pressure resistance than medium-duty straps.
• Uniform pressure dispersion: the widened band body spreads heavy cargo pressure evenly, preventing breakage and loosening.
• Flexible under load: retains good flexibility while raising capacity, avoiding brittle fracture during operation.
• Anti-slip or anti-scratch: embossed surface for heavy-pallet grip; smooth surface to protect goods from scratches.
• Rust-free and safe: no rust, no burrs, no sharp edges on heavy handling.
• Stable tension: consistent width and tension for reliable heavy-load performance.

On our production floor. The standard heavy 1.0 mm section runs on the same lines as our other grades, so width and tensile stay inside specification.

On heavy cargo, buyers sometimes jump straight to the thickest band available. Above a point that is counter-productive: an over-thick, over-hard strap becomes brittle, resists the bend radius and fractures in the machine. The 1910 is deliberately set at a standard heavy thickness — 1.0 mm on a 19 mm width — which is enough section to hold heavy loads without the brittleness penalty. It retains enough elongation to flex and absorb impact, which is the failure mode that actually matters on heavy pallets in transit. When the load is denser still — steel coils at the top of the range — I move the buyer to the 9,120 N 1912.

• Heavy-duty automatic strapping machines.
• Semi-automatic equipment in the heavy tension window.
• Heavy-duty manual tensioning tools.
• Embossed heavy type for anti-slip grip; smooth heavy type for anti-scratch protection.

Tensile testing station. I confirm the 7,600 N rating, the 9%–13% elongation window and the weld on every release — the seal is the usual system failure point.

Specified for heavy industrial finished products, large pallets, building-material bundles, metal products, heavy logistics cargo and steel-coil bundling. This is the grade for the heavy-load group — the cargo where a strap failure is a safety and claim event, not an inconvenience.

Finished-goods storage. We hold stock across the standard range so mixed-SKU and repeat orders ship without a full production lead time.

Warehouse, inspection area and export loading under one roof — in-house control from extrusion through to container loading.

• Tensile verification: sample pulled to confirm the 7,600 N strength and 9%–13% elongation.
• Dimensional measurement: width, thickness and coil length checked against the 19 mm / 1.0 mm / 800 m specification.
• Surface and edge inspection: clean, uniform finish; smooth, non-scratching edge.
• Weld test: heat-seal joint verified to hold at full strength under heavy tension.

This product is manufactured by Xiangyang Suhai Machinery Equipment Co., Ltd., founded February 2011 in Hubei, China, and recognised as a National High-Tech Enterprise (Certificate No. GR202442006492, issued 26 December 2024, valid for three years). The company was selected for Hubei Province's 7th batch of Specialised, Refined, Differentiated and Innovative SMEs. Manufacturing is certified under quality, environmental and occupational health & safety management systems, and products carry SGS test reports — the file overseas buyers require for customs clearance, supply-chain audits and end-customer compliance review.

Company qualification file — business registration, enterprise and management-system certificates, open for audit before order placement.

Technical development record. R&D work targets strength consistency, production efficiency and product-life improvement.

Our manufacturing plant. The 1910 is extruded and drawn on our own lines, so section and tensile are controlled at source.

Production and quality team. Extrusion, drawing, inspection and packing are in-house — the reason specification and supply stay consistent order to order.

Each roll is wrapped in plastic protective film and stacked on standard wooden pallets, the pallet fully wrapped in stretch film against dust and moisture and secured with PET straps for stable loading — suitable for container and full-truck shipment. Pre-sales load matching and free sample testing are provided.

Export packaging and container loading. Dry, unitised and secured — ready to run on your line on arrival.

Container loading, verified before seal. Every order is checked for count, packaging integrity and moisture protection before shipment.

In-house process control. Running one recipe at volume is how we hold consistent quality, stable supply and factory pricing on the same roll.

Our engineering team. We match load, tooling and machine tension to the section before recommending a grade — so the strap you buy fits the equipment you already run.
