Impact Resistant Tali Strapping 15mm 5400N High Tensile Strapping Band PET

I am the engineer who runs the extrusion line, and the 1509 is the anti-break PET strap I put forward when a customer needs heavy pallet cargo to stay put. It is a 15 mm × 0.9 mm strapping tape rated at 5,400 N with 11%–14% elongation, supplied at about 1,140 m per coil. The word "anti-break" is not marketing on this grade: it is what the material selection and the stretching process are tuned to deliver, so the band takes the impact of a loaded pallet without snapping at the corner or the seal. It is specified for palletising and bundling — bricks, timber, cartons, metal, glass — anywhere a load moves a little in transit and the strap has to absorb that movement and stay tight. For buyers, the two numbers that decide whether your pallets arrive intact are break strength and tension retention, and I will walk you through both.

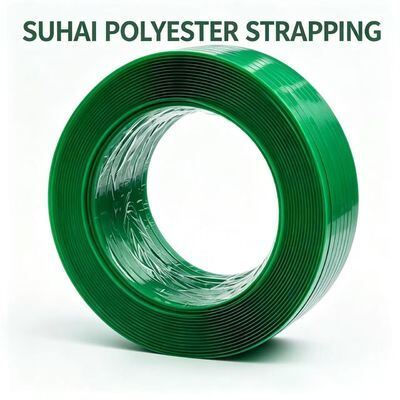

The 1509 coil. A 15 mm × 0.9 mm tape rated at 5,400 N — anti-break and tension-retentive for heavy pallet cargo.

Here is where the 1509 sits in the family, so the choice is explicit:

The 1509 is the workhorse medium grade: strong enough for heavy pallets, still flexible enough to bend cleanly around a tight corner and run on standard hand tools and semi-automatic equipment.

• Anti-break impact resistance: absorbs corner and handling impact without snapping.
• 5,400 N high tensile: holds heavy pallet cargo through handling and long transit.
• Strong tension retention: about 95% holding force after tensioning, so the pallet does not move.
• Moisture resistant: PET polyester will not rust or stain cargo.
• Long coil: about 1,140 m per coil, so fewer change-overs on a busy line.
• Safe to handle: no sharp edges and no rust marks, unlike steel strapping.

Why "anti-break" comes from the process, not the label: a PET strap that snaps in service almost always fails at a corner under impact or at a seal under sustained tension, not in the middle of a straight run. So we tune two things. First, raw-material selection — 100% virgin polyester with a consistent intrinsic viscosity, so the band has the toughness to absorb impact instead of cracking. Second, the stretching process — we draw the band to give it the orientation that carries load along its length while keeping enough elongation to move with an impact rather than shatter. The result is a 5,400 N band with 11%–14% elongation and high elastic recovery, which is exactly what a moving, settling pallet needs. That is the engineering behind the name, and it is why I check raw material and draw conditions as carefully as the final tensile figure.

Loosening is the failure that does not look dramatic but ruins the shipment. A pallet load settles and shifts as it rides, and a strap with high creep slowly relaxes — so the pallet is tight at the dock and loose at destination, and the whole point of strapping is lost. The 1509 fights that with high elastic recovery: it takes up the small movements of the load and comes back, holding about 95% of its tensioning force, so the pallet the customer receives is as tight as the one that left your yard. In one line for the buyer: on a pallet that has to survive a long transit, retained tension matters as much as break strength — a strap that stays tight beats a strap that is merely strong.

The extrusion and stretching line. Raw-material grade and draw conditions are controlled here — the source of the anti-break toughness.

Why 0.9 mm on this grade: the thickness is what turns a strap into an anti-break strap rather than a fragile one. At 0.9 mm on a 15 mm width the 1509 reaches 5,400 N while keeping the crack-toughness and impact resistance that a heavy pallet needs at the corner. Go thinner and the band turns fragile at the seal and shatters under impact; go thicker and it becomes stiff, fights the bend radius and costs more than the job requires. We draw to a nominal 0.9 mm and verify it with a calibrated calliper at several points along each coil, because a strap that quietly arrives thin would quietly lose both strength and impact resistance. In one line: 0.9 mm is the balanced medium point that keeps a 5,400 N band tough instead of brittle.

• Fits manual tensioning tools for standard pallet work.
• Runs on semi-automatic and automatic strapping equipment.
• Embossed type for anti-slip grip on smooth loads; smooth type for a clean, non-marking surface.
• Standard 250 mm core for common mandrels; green and black as standard colours.

Engineering team. I match the strap specification to your actual load, tensioning method and transit route before quoting.

Specified for palletising and bundling across building materials and industrial cargo — bricks and blocks, timber and panels, cartons, metal products and glass — as well as container loading and long-distance export logistics. It suits any application where a loaded pallet moves a little in transit and the strap has to absorb that movement, stay tight and protect the cargo with a non-rusting band.

Here is a case from a building-materials distributor I supply. Mixed pallets of bricks and bagged product are strapped, trucked to the port and container-loaded for export. On a basic medium strap they kept seeing two problems: bands snapping at the pallet corners under impact, and loads arriving shifted loose after a long sea leg. We moved them onto the 1509, keeping the same tools and strap count. The anti-break toughness stopped the corner failures, and the tension retention held the loads tight so they arrived as strapped, without the wrap carrying the weight. It is the case for this grade in a sentence: for a moving, settling pallet, you want a strap that is tough at the corner and stays tight over distance, not just one with a high break number.

Warehouse and finished-goods area. Every roll is inspected and weighed before it is released for shipment.

• Tensile verification: sample pulled to confirm the 5,400 N strength and 11%–14% elongation.
• Dimensional measurement: width, thickness and coil length checked against the 15 mm / 0.9 mm / 1,140 m specification.
• Surface and edge inspection: clean, uniform finish; smooth, non-scratching edge.
• Weld test: heat-seal joint verified to hold at full strength.
• Raw-material and roll-weight checks: controlled from granule to finished coil.

I have listed the checks; here is how they actually run, so the numbers are proven rather than printed. Tensile: a sample from each batch is clamped in the rig and pulled to failure, reading peak load and elongation — it must break above 5,400 N and stay within the 11%–14% window, or the batch is held, because on an anti-break grade the elongation band is what stops the brittle failures. Dimension: a calibrated calliper checks width and thickness at several points along the coil and the length is metered as the band winds, so a 15 mm / 0.9 mm / 1,140 m coil is verified rather than assumed. Edge and surface: every coil passes an even-finish, burr-free inspection. Weld: we heat-seal a sample joint and load it to failure to confirm the seal holds at full strength — on a load-bearing strap the seal is usually the first thing to give. A batch ships only when all four pass, and the record stays with us for traceability.

This product is manufactured by Xiangyang Suhai Machinery Equipment Co., Ltd., founded February 2011 in Hubei, China, and recognised as a National High-Tech Enterprise (Certificate No. GR202442006492, issued 26 December 2024, valid for three years). The company was selected for Hubei Province's 7th batch of Specialised, Refined, Differentiated and Innovative SMEs. Manufacturing is certified under ISO 9001 quality management, and products carry SGS test reports — the file overseas buyers require for customs clearance, supply-chain audits and end-customer compliance review.

Technical documentation and patents behind the strapping process — the engineering file available on request.

Each roll is wrapped in plastic protective film and stacked on standard wooden pallets, ready for container or full-truck shipment. Small trial orders are acceptable, and long-term repeated supply is supported from a stable 3,000-ton monthly output. Pre-sales load matching and free sample testing are provided.

Stable output and coil-to-coil consistency across production — why repeat orders match the last shipment.

Export shipment. Dry, unitised and secured — ready to run on your line on arrival.
